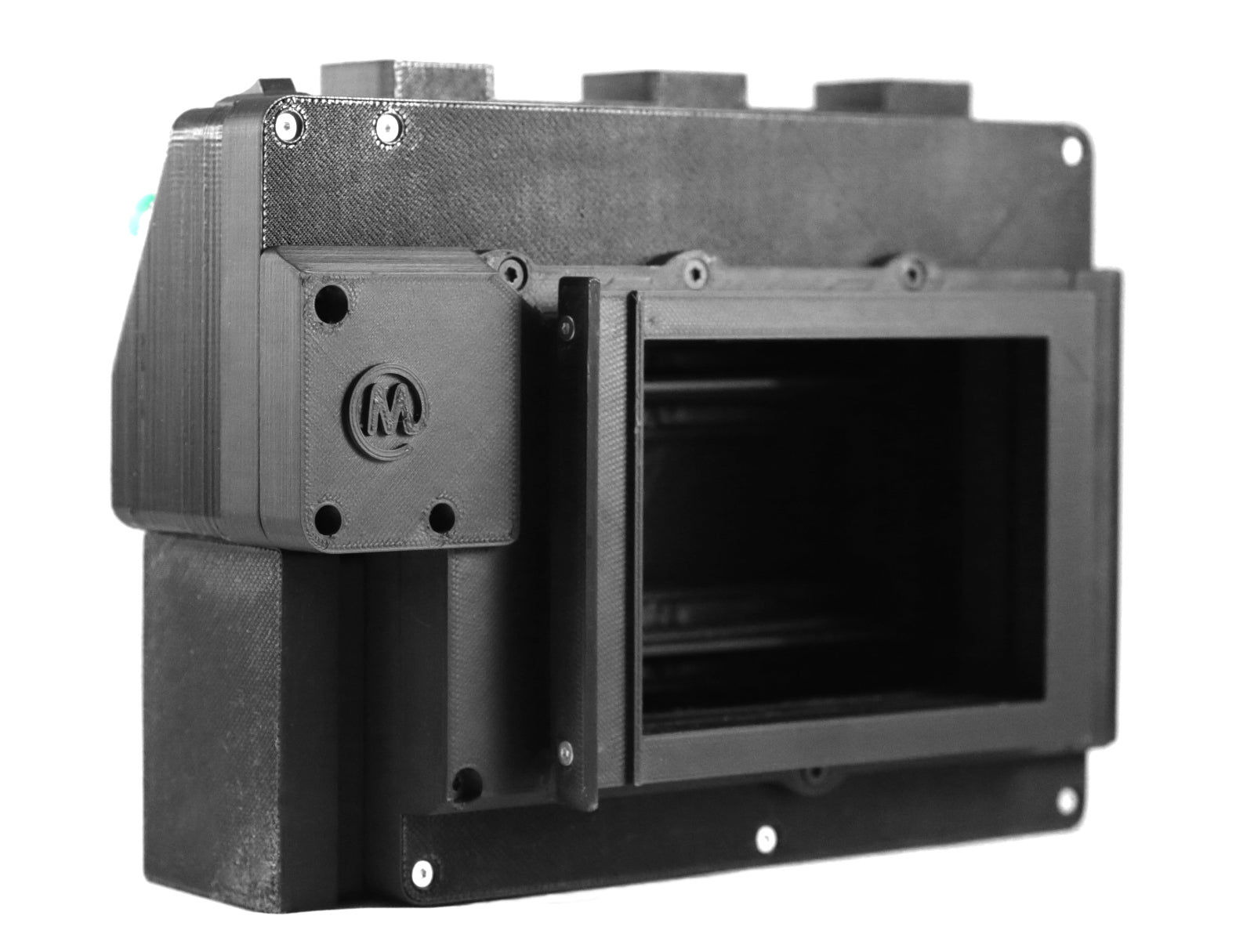

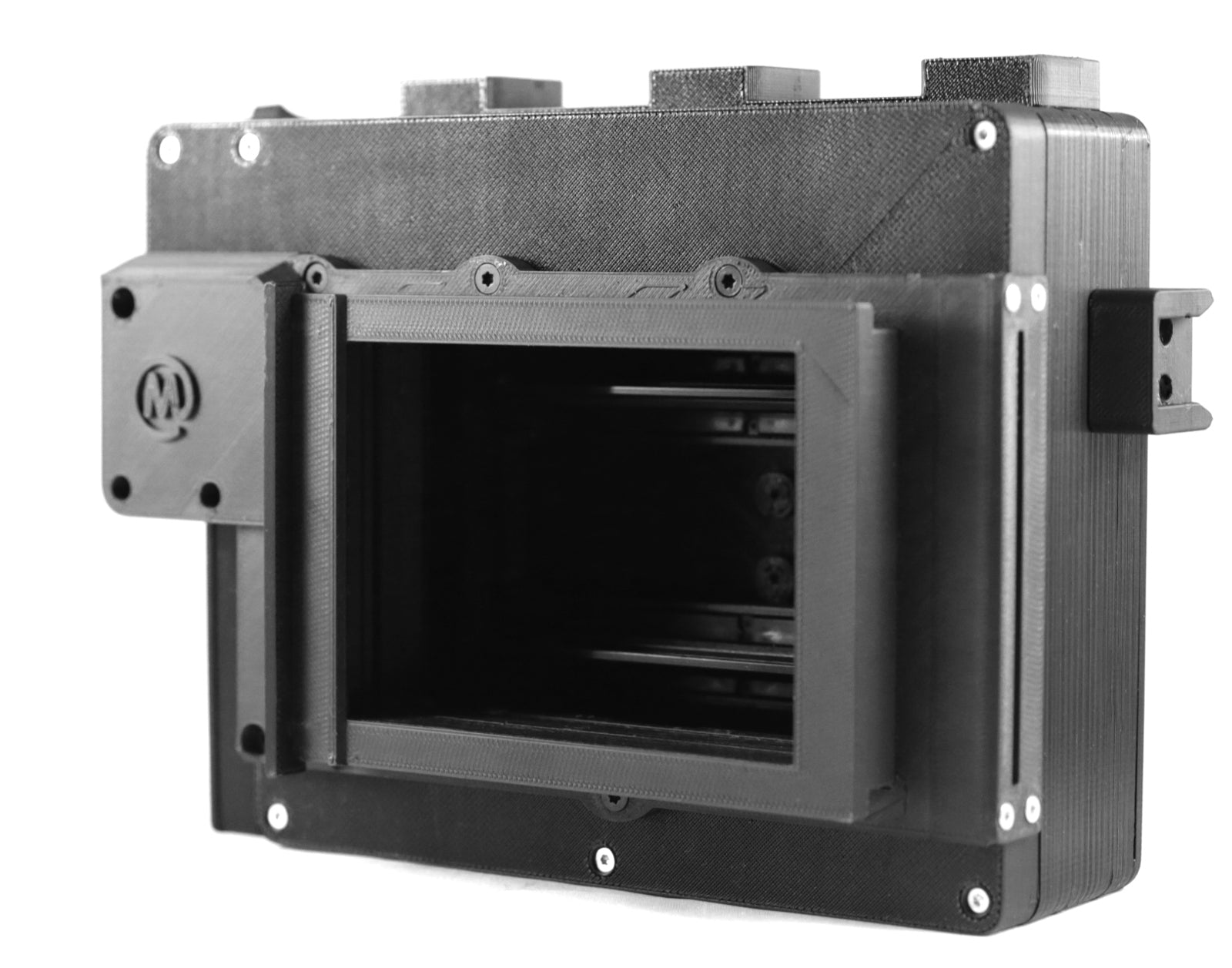

Mercury Instax Wide Graflok 23 Back

Our Instax Wide Motorized Graflok 23 back is a standard Graflok back compatible with the International/Graflok standard. It can be mounted on the following cameras:

• Mercury Medium Format (Graflok 23)
• Graflex Century, Baby Graphic
• Horseman 985, VH, VH-R

It can be physically mounted on other cameras that take the Graflok 23 standard, such as the Mamiya RB67 and Universal Press, and Graflex XL, but those rigid-body cameras cannot compensate for its altered film plane.

This is an RS-30 back, meaning that it places the film plane 30mm farther away than a standard Graflok back would. Thus it is only compatible with camera bodies that can be shortened by 30mm. This various camera to camera, but this roughly corresponds to a 75mm or longer lens or longer on Mercury and most other cameras.

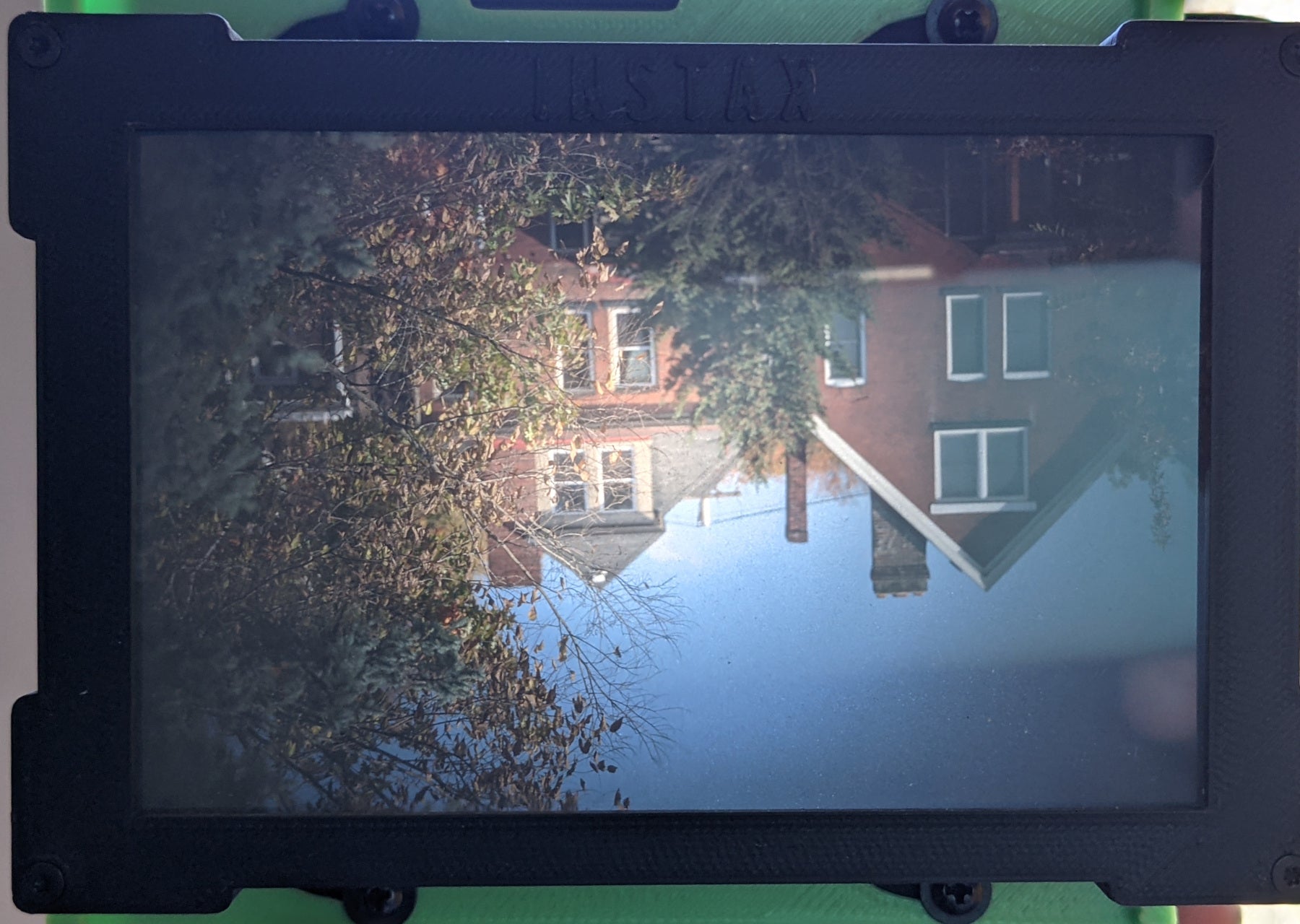

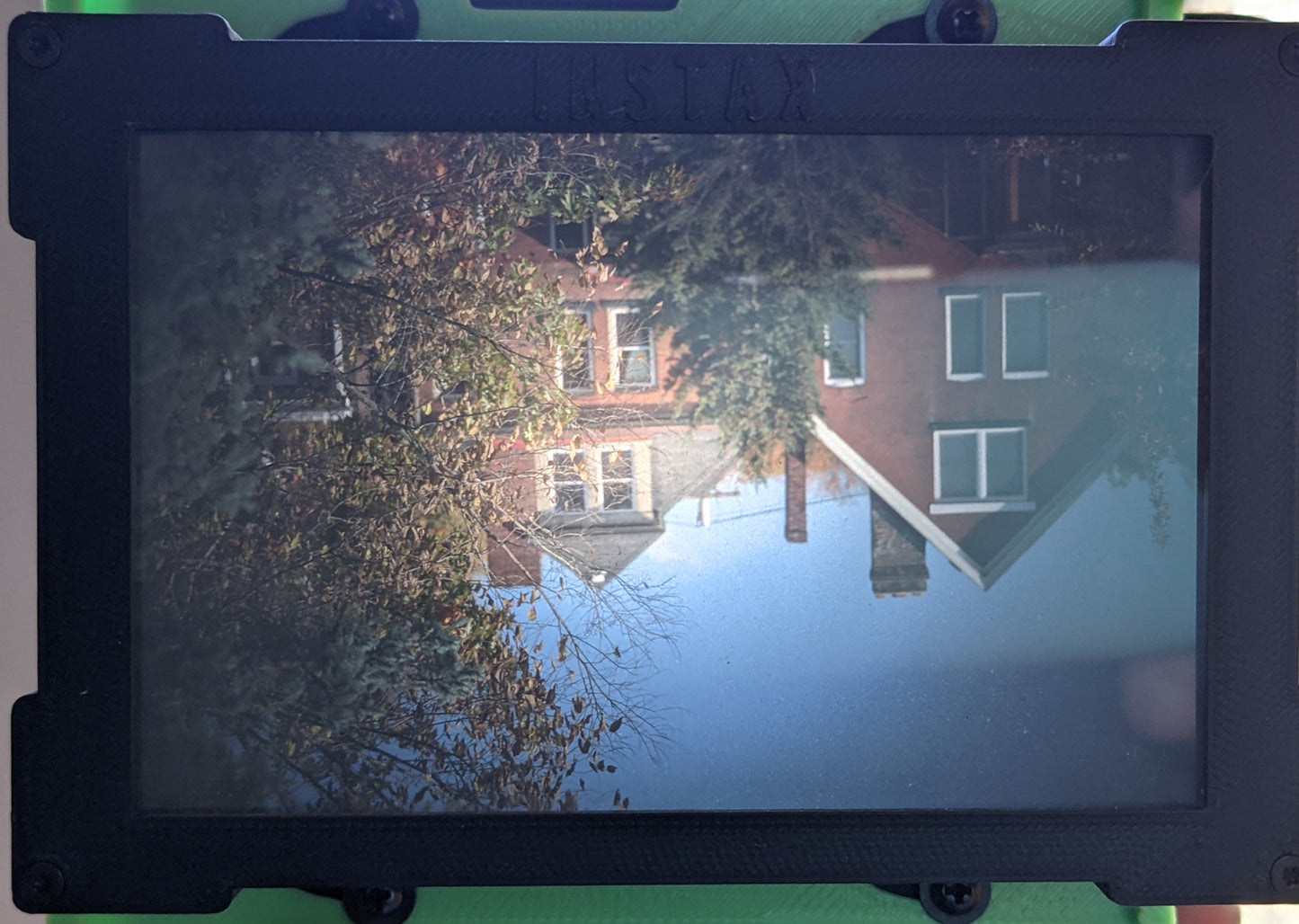

Available with or without a matching ground glass back for precise composition and focusing.

User guide
